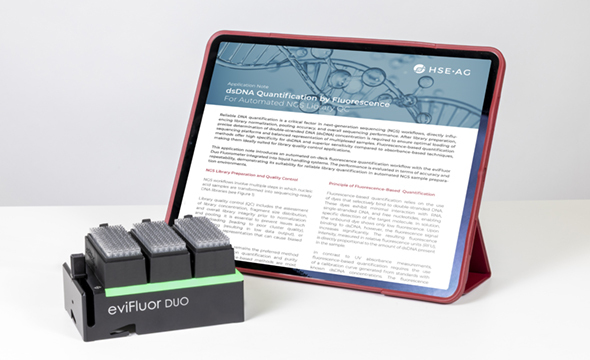

eviFluor Duo Fluorometer



  •
Transform Your Nucleic Acid Quantification

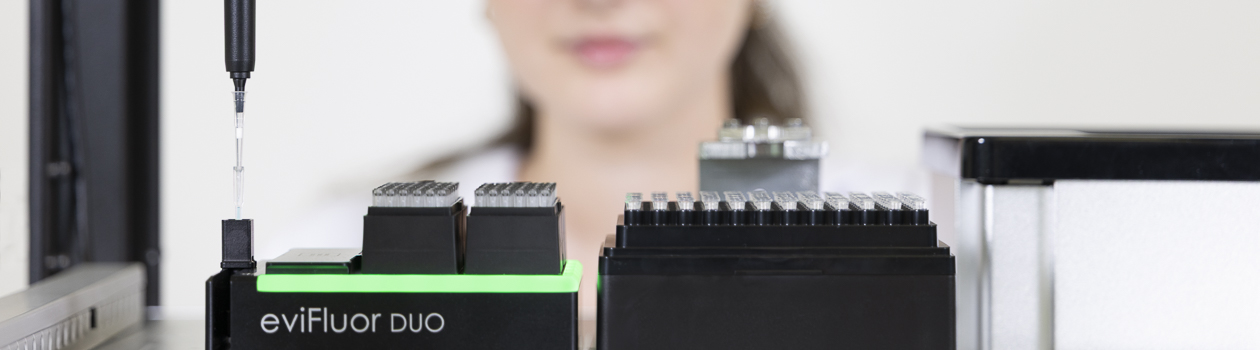

Measure Fluorescence Directly At The Pipette Tip



The eviFluor Duo Fluorometer is an on-deck module for highly sensitive fluorescence detection, ideal for quantifying DNA and RNA samples. By connecting a micro-cuvette directly to the pipette tip, quantification and quality control are seamlessly integrated into the liquid handler workflow.

Maximize walk-away time, ensure consistent results and reduce reagent consumption – all in one instrument.

Watch now to see how effortlessly this compact module fits into your workflow.

  •

Highlights



Micro-cuvette measurement technology

The eviFluor Duo is a high-sensitivity, dual channel fluorometer for accurate DNA and RNA quantification. The measurement is based on fluorescent dyes that bind selectively to nucleic acids. Its unique micro-cuvette technology eliminates errors from evaporation and sample carryover for reliable, high-quality readings.

Peak performance and walk-away time

Ensure high accuracy and reliability with a fully automated workflow. Integrating the eviFluor Duo Fluorometer directly on-deck eliminates variability resulting from manual steps. This hands-free workflow enhances the quality of downstream analysis while maximizing walk-away time – freeing up staff for other critical tasks.

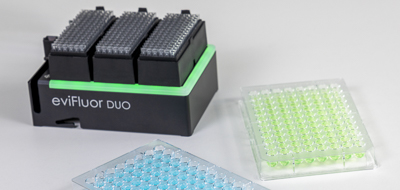

Enhanced lab efficiency and cost control

The eviFluor Duo Fluorometer minimizes reagent consumption through low volume assays, making it the ideal choice for resource-conscious laboratories. Fewer repeat runs, reduced manual effort, and more efficient reagent usage result in lower operating costs and improved process efficiency.

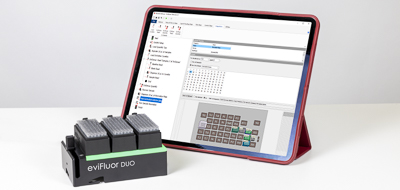

Smart data handling

With QC integrated into your liquid handler workflow, sample identification, data capture and transfer are automatic and effortless – eliminating manual steps and minimizing errors. Achieve full traceability and data integrity, ready for downstream analysis or AI-driven analytics.

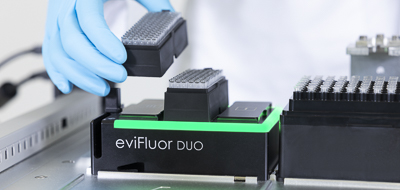

Compact design, seamless integration

Designed with a minimal footprint, the eviFluor Duo Fluorometer fits perfectly into a standard SBS plate position on the liquid handler deck, preserving valuable workspace. The compact size and intelligent design ensure effortless integration into your automation workflow.

Technical Specifications



 Measurement principle

 Fluorescence measurement

 Wavelengths

 LED peak 470 and 625

 Excitation wavelength

 470 nm / 625 nm

 Emission wavelength

 520 nm / 680 nm

 Detectors

 Si-Photodiode

 Min. sample volume

 1 µL

 Total measurement volume

 10 µL

 Measurement acquisition time

 1 s

 Calibration type

 2 point standard

 Compatible cuvettes

 eviEtte Micro Cuvettes

 Dimensions

 Base Socket (W x D)): SBS format, 128 x 85 mm (5 x 3.4 in)
 H: 68 mm (2.7 in) including racks filled with cuvettes

 Weight

 0.6 kg (1.3 lb)

 Communication interface

 USB Type C (Protocol USB 2.0)

 Environmental conditions

 15 – 30°C (59 – 86 F)
 20 – 70% relative humidity (non-condensing)

 Altitude

 Up to 2000 m (6500 ft)

 Installation site

 Indoor use only

 Transport conditions

 -10 – 60 °C (14 – 140 F)

 Operating voltage

 5 VDC (USB Type C)

 Overvoltage category

 I

 Pollution degree

 2

Certifications and compliance

 CE marked (conforming with applicable EU directives)
 cMETus certified (conforming with US and Canadian safety standards)





dummy-cuvette

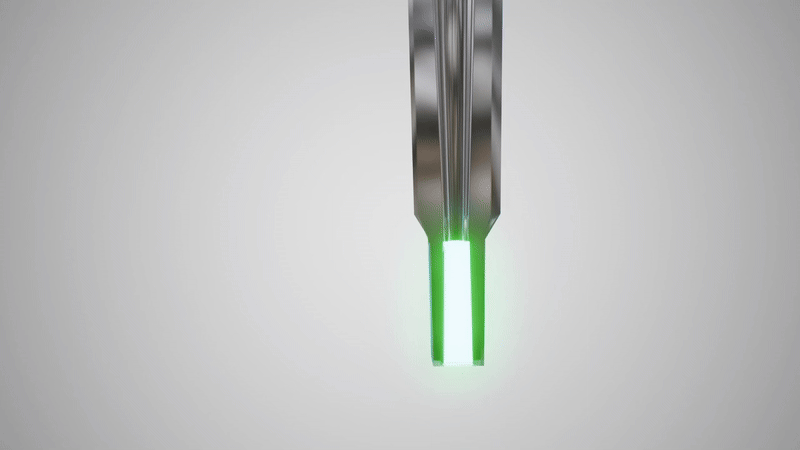

eviEtte Micro Cuvettes

At the core of the eviFluor Duo Fluorometer is the unique eviEtte Micro Cuvette, designed to bring fluorescence readings right to your liquid handler's pipette tip.

  • Cuvette directly connected to pipette tip – Enables seamless integration of fluorescence detection in your liquid handler
  • High measurement stability – Minimizes variability by eliminating sample carryover and evaporation
  • Effortless handling for routine use – Balances user-friendly design with analytical performance, making it ideal for everyday quantification tasks





Product Documentation



Datasheet eviFluor Duo Fluorometer: Product benefits, technical specifications and more

DOWNLOAD



User Manual: Essential safety information, details on intended use and installation instructions for eviFluor Duo Fluorometer

DOWNLOAD







Meet another Member of our Product Family

Dummy-F-eviOverview_Selection_eviDense2

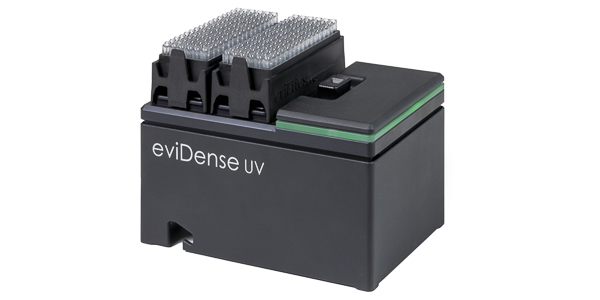

eviDense UV Photometer


UV absorbance-based quantification, directly on-deck.
Achieve accurate nucleic acid quantification and purity checks with micro-cuvette precision - automated, compact, and seamlessly integrated into your liquid handler. Increase walk-away time, enhance results reliability, and ensure uncompromised data integrity - all in a single instrument.
